Measurements 81mm X 55mm X 18mm

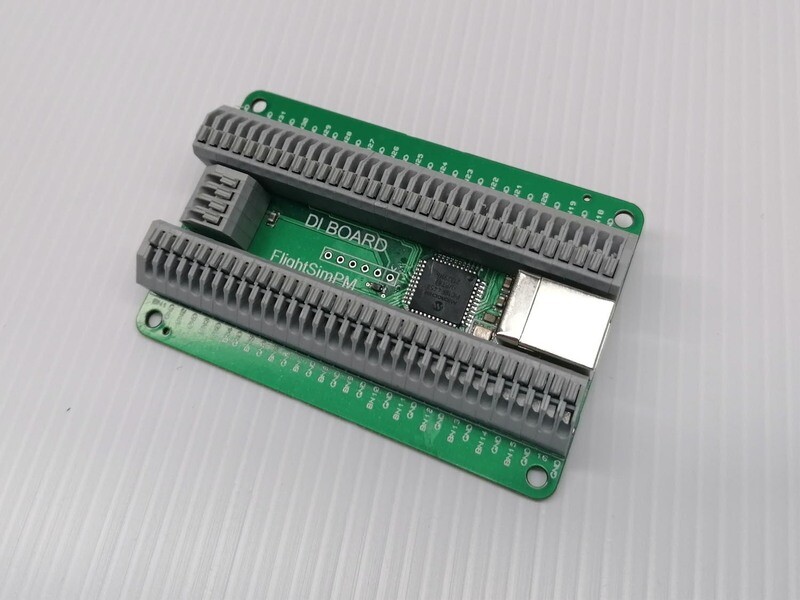

Joystick interface board with simple push in wire connectors.Build your own gaming device, flight panel, button box, pedals, joystick etc.Compatible with any game that can detect and use generic joysticks - FS2004,FSX, X-Plane,MSFS2020,Assetto Corsa,Euro Truck Simulator2,Elite Dangerous etc.

The best part about this card is that with our programming tool.Normal on/off switches can be programmed to act as a 2 way switch.Please see the user manual on our tutorial page.

• Powered by USB bus +5V
• 32 independent digital inputs for buttons and switches.Each input has its own two terminals for GND and button input but also GND can be shared.
• Support for up to 16 rotary encoders which can be controlled trough our programming software.
• 4-8 Hat switch axis
• 2 extra 5v connection
